Vanilla Gold X3 mobile heroVanilla Gold X3 at a fleet operations facility

Fleet monitoring
should showmore
than vehicle location.

Vanilla Gold X3 connects location, configured vehicle events, control interfaces and compatible sensor data to CLAS Track for commercial operations.

Review the operating information

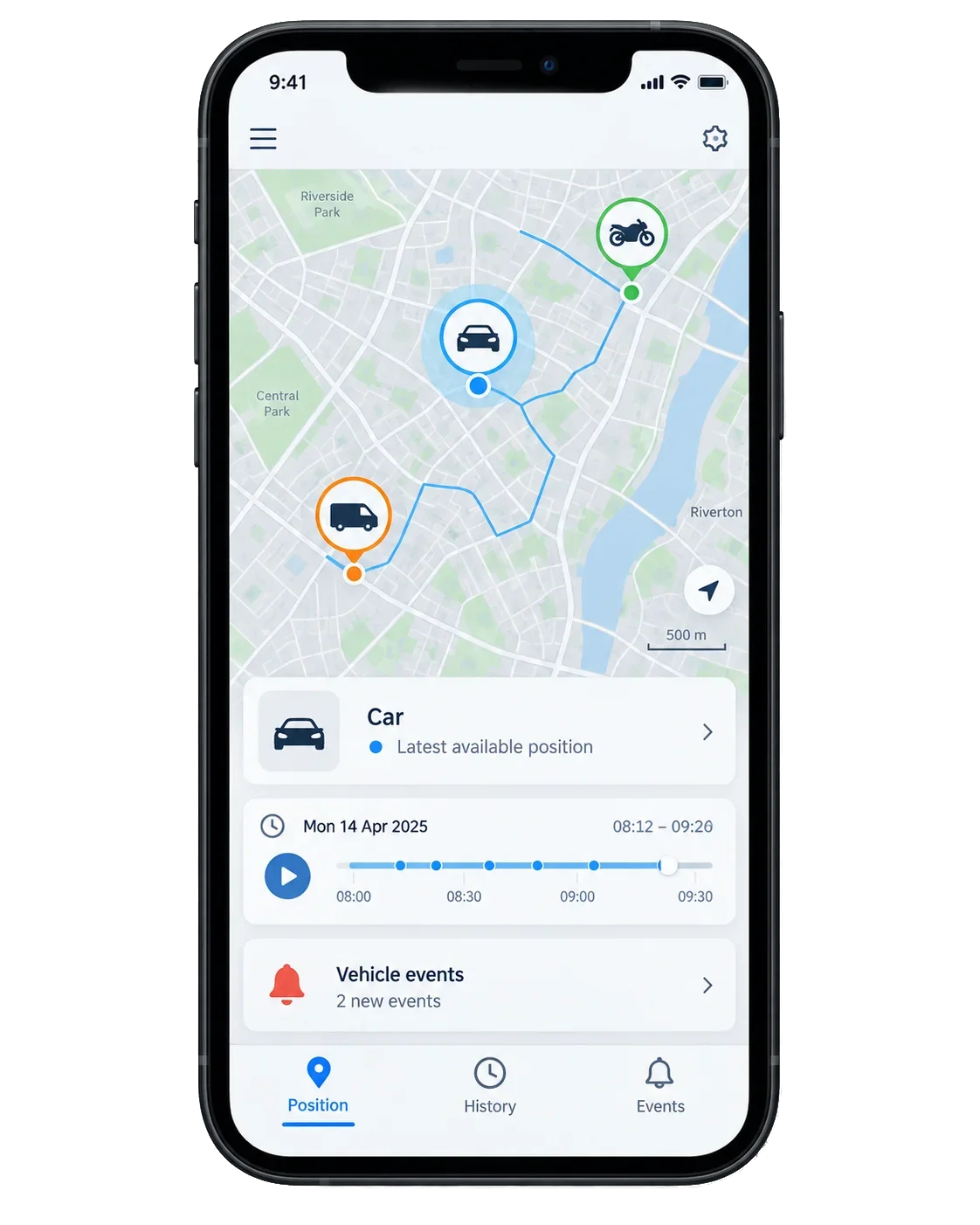

Commercial vehicles preparing for work at a Malaysian distribution facilityCommercial vehicles preparing for work at a Malaysian distribution facility

Operational information belongs in one fleet record.

Vanilla Gold X3 combines positioning with compatible vehicle and sensor inputs. CLAS Track organises the reported information for monitoring, history and operational review.

  • Vehicle status Review the latest information reported by each connected vehicle.
  • Operating conditions Include compatible fuel, temperature and vehicle-power information where the required hardware is installed.
  • Configured events Bring supported vehicle, power, emergency and sensor events forward for investigation.

Different operations require different vehicle information.

The final installation is configured around the operating data required from each vehicle and the compatible sensors selected for the application.

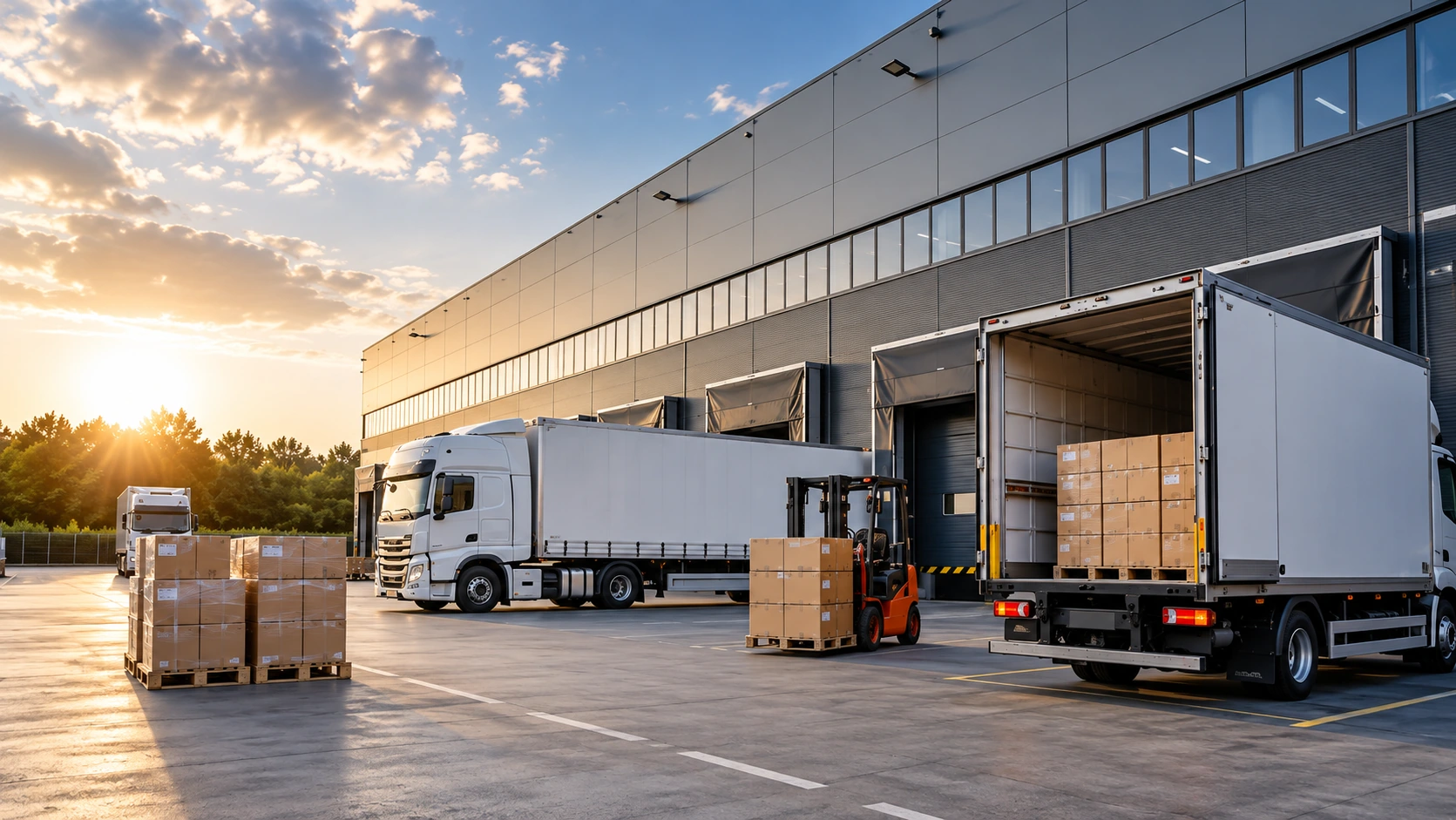

Distribution vehicles at a Malaysian loading facility

Distribution fleets

Vehicle position, journey history and configured events support daily coordination across vehicles working on multiple routes.

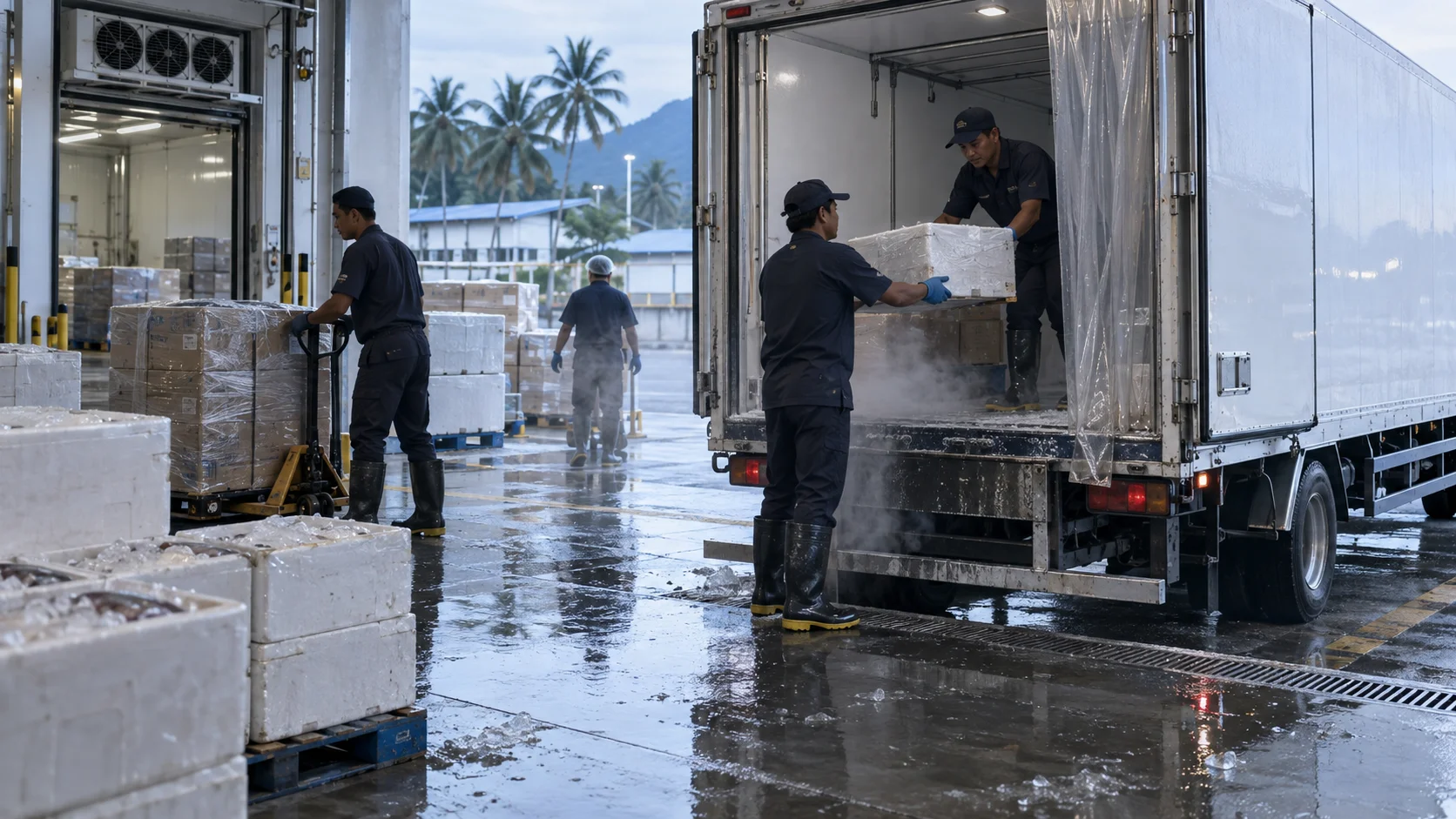

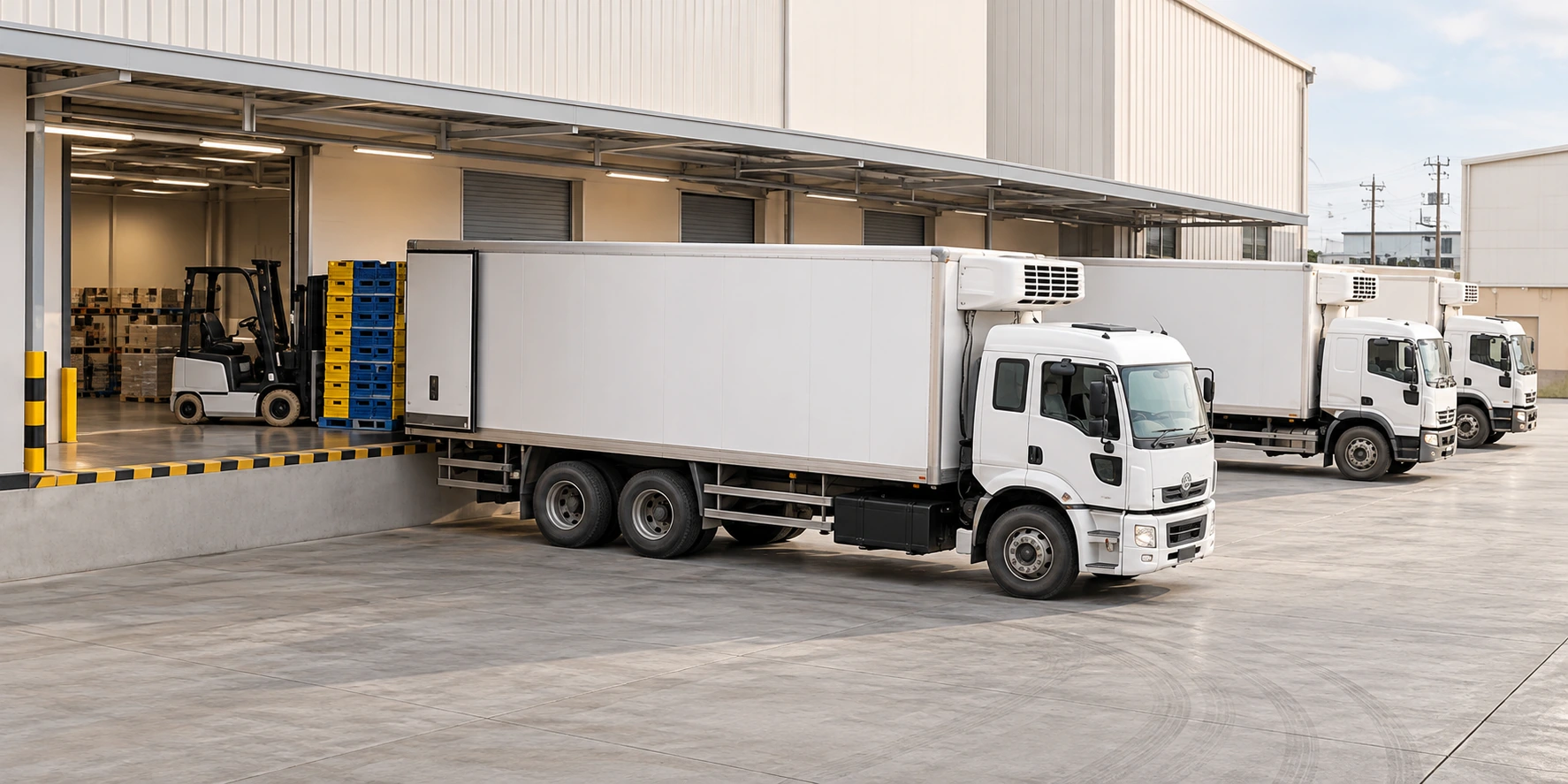

A technician checking a refrigerated commercial vehicle

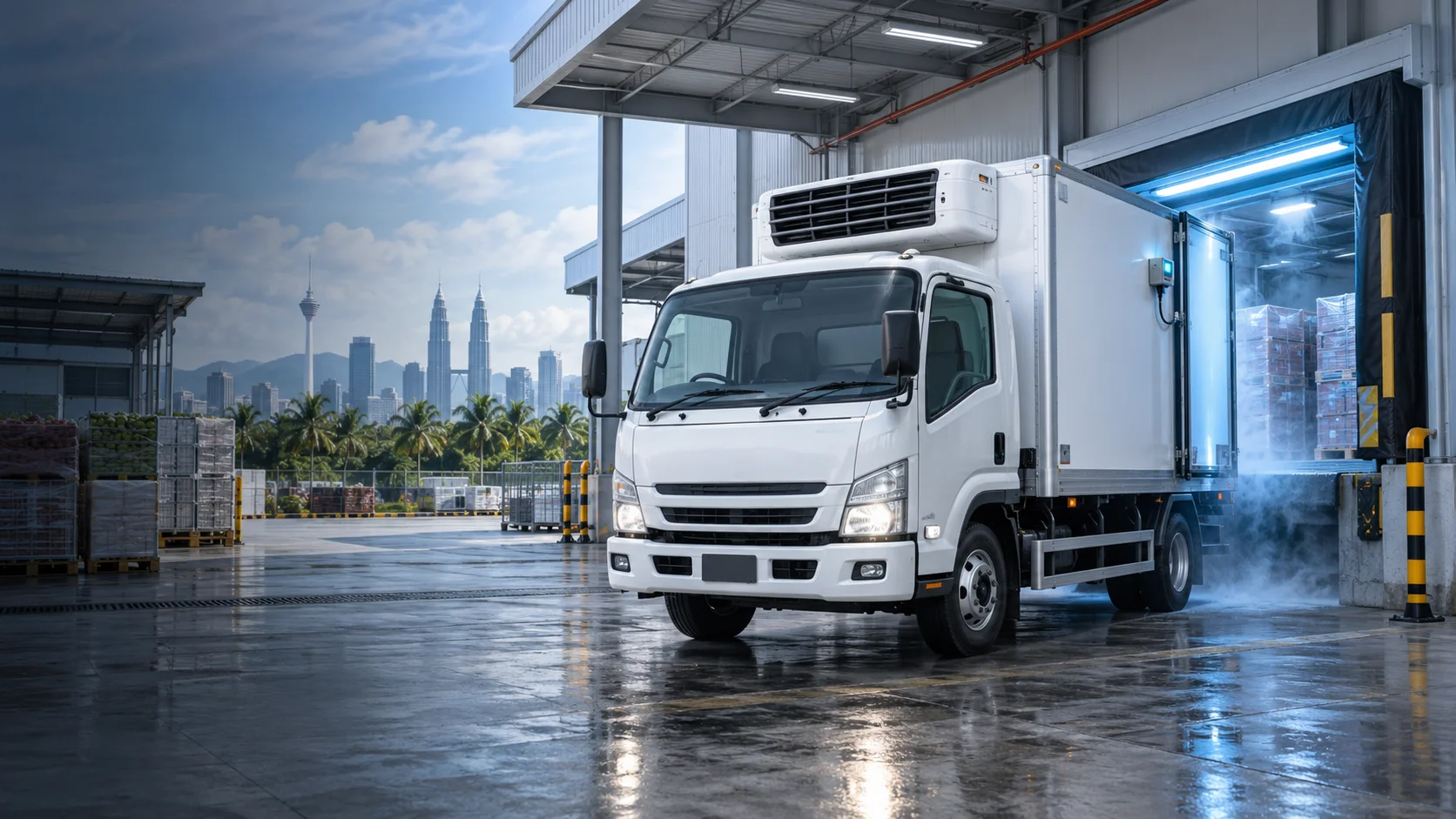

Cold-chain vehicles

Compatible wired or Bluetooth Low Energy temperature sensors can add cargo-condition information to the vehicle record.

A technician working beside a heavy commercial vehicle

Haulage fleets

Compatible fuel sensors can provide level information for reviewing changes and investigating operating patterns.

A work vehicle supporting a team at a Malaysian project site

Construction and service fleets

Vehicle location, event inputs and compatible sensors support commercial vehicles working across changing sites.

Three inputs add context to fleet movement.

Vanilla Gold X3 can be configured around approved sensors and accessories when a fleet needs to investigate fuel levels, environmental conditions or a driver-initiated emergency signal.

Technical cutaway showing a capacitive fuel-level probe installed vertically inside a commercial vehicle fuel tank

Capacitive fuel-level sensor

A tank-mounted capacitive probe measures changes in fuel level. When an approved sensor and interface are fitted, the readings can support refuelling review and investigation of unexpected level changes.

Optional accessory. Tank suitability, sensor length, interface and calibration must be confirmed for each installation.

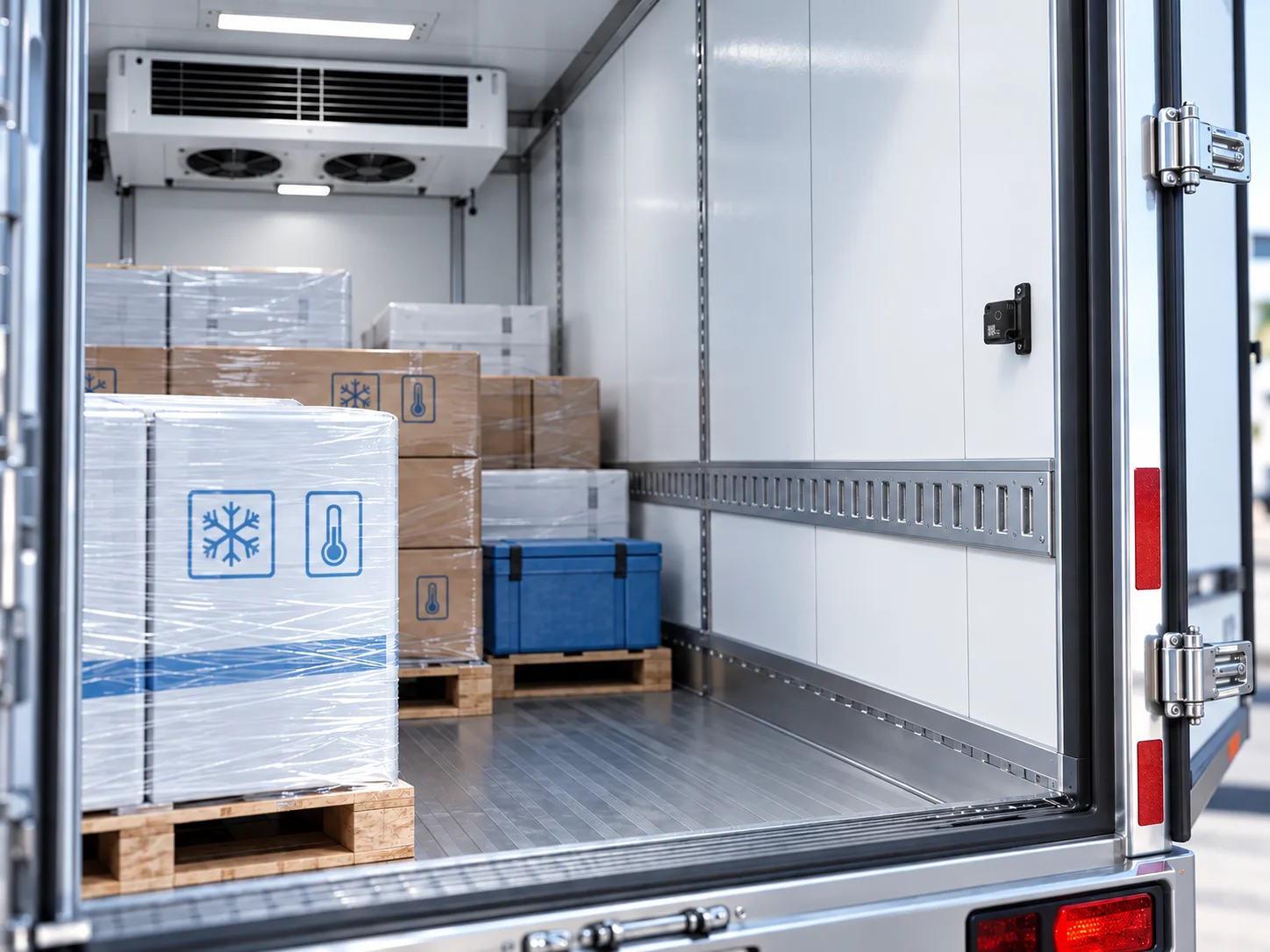

Technical application visual showing a temperature and humidity sensor mounted inside a refrigerated cargo body

Temperature and humidity sensor

The Bluetooth environmental sensor is intended for temperature and humidity monitoring. In an approved configuration, this can add operating context for refrigerated vehicles and temperature-sensitive deliveries.

Optional accessory. Pairing with Vanilla Gold X3 and the information available in CLAS Track require final confirmation.

Commercial driver pressing an installed SOS button inside a right-hand-drive vehicle during a distress situation

SOS Alert

A discreet wired button gives the driver a deliberate way to initiate an emergency input. The resulting alert can support a defined response process for field, service and delivery teams.

Optional accessory. Button position, connector compatibility, alert routing and response procedures must be agreed during configuration.

Vehicle and sensor signals become organised fleet information.

Vanilla Gold X3 receives supported inputs, transmits the reported information through the selected mobile network and connects it to CLAS Track.

Vehicle and sensor inputs

  • Global Navigation Satellite System positioning
  • Compatible fuel-level input
  • Compatible temperature sensors
  • Configured vehicle events

Vanilla Gold X3

  • 4G LTE with supported 2G fallback
  • Analog and RS485 interfaces
  • Bluetooth Low Energy 5.0
  • Vehicle control interfaces

CLAS Track

  • Fleet status
  • Journey history
  • Configured exceptions
  • Sensor information

Available information depends on the installed sensors, vehicle configuration, platform functions and selected connectivity plan.

Each fleet installation begins with the operating requirement.

Pro ICE and our dealers identify the required vehicle information, compatible sensors, control functions and installation method before configuring Vanilla Gold X3.

  • Operating requirementDefine the vehicle, sensor and event information required by the fleet.
  • Hardware selectionSelect compatible sensors and accessories for the vehicle and operating environment.
  • Professional installationInstall and configure the terminal, interfaces and supported functions.
  • After-sales serviceOur dealers provide assistance for the installed system.

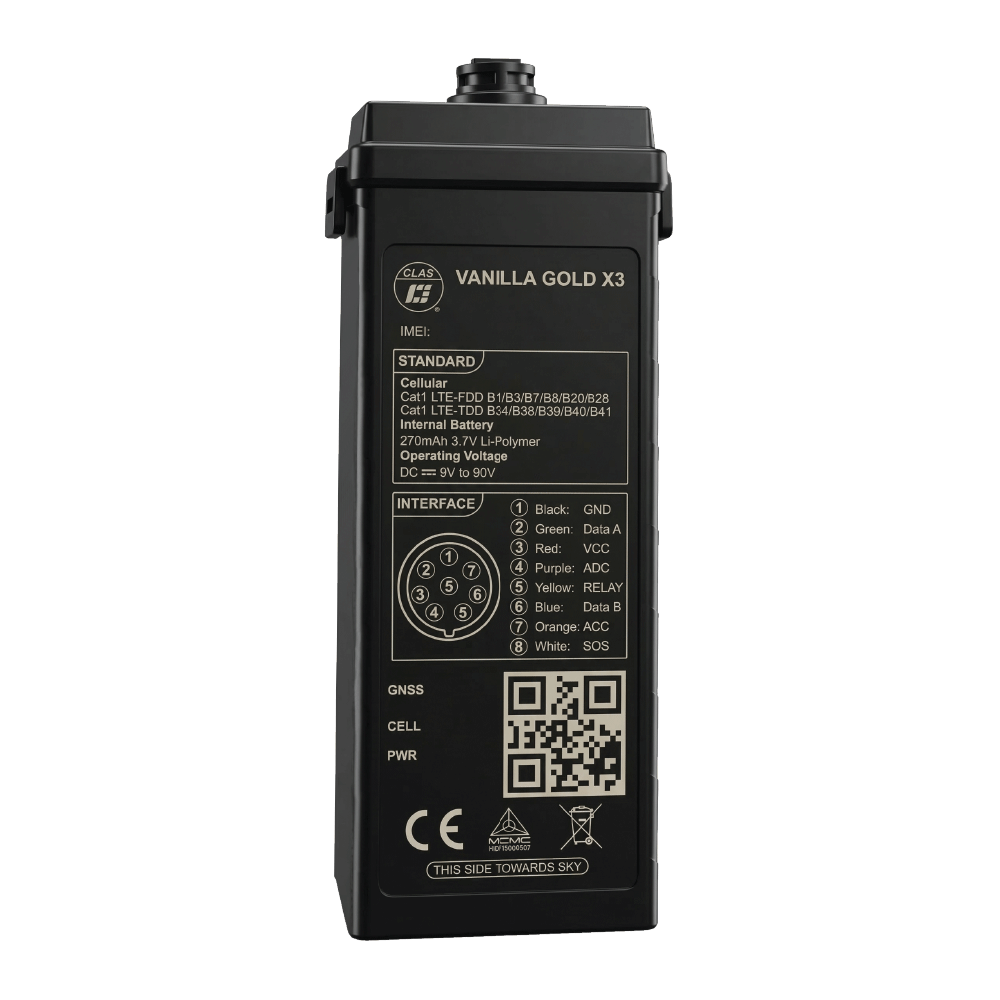

Original Vanilla Gold X3 fleet terminal
TrackScore Certificate of Excellence for CLAS Track Vanilla Gold X3

Vanilla Gold X3 received a five-star TrackScore rating.

★★★★★

The assessment was awarded under the Commercial Vehicle Tracking System Scorecard (TrackScore) by the Malaysian Institute of Road Safety Research and CyberSecurity Malaysia.

The rating applies to the product and assessment identified on the displayed certificate.

Technical information for Vanilla Gold X3

A broader interface architecture for fleets that require location, vehicle inputs and compatible sensor information.

4G + 2GDual-generation connectivityLong Term Evolution with supported Global System for Mobile Communications fallback
9 – 90 VElectrical inputDirect-current operating range
IP 66Enclosure ratingIngress Protection classification
10Wireless sensorsUp to ten compatible Bluetooth Low Energy sensors

Supported 2G GSM fallback provides another compatible network path when 4G LTE is unavailable, subject to local network coverage and availability.

Network and positioning
Cellular architecture
Long Term Evolution Category 1 (LTE Cat 1) with supported second-generation Global System for Mobile Communications (2G GSM) fallback
Fourth-generation Frequency Division Duplex
Bands B1, B3, B7, B8, B20 and B28
Fourth-generation Time Division Duplex
Bands B34, B38, B39, B40 and B41
Satellite navigation systems
GPS, GLONASS, BeiDou and Galileo
Electrical and environmental
Input voltage
9 to 90 volts direct current
Protection
Ingress Protection rating IP66
Installation
Professional fleet configuration required
Sensor and vehicle interfaces
Analog input
Configurable analog input for compatible sensors
Serial interface
RS485
Wireless interface
Bluetooth Low Energy (BLE) 5.0
Wireless capacity
Up to 10 compatible Bluetooth Low Energy sensors
Digital input
Accessory power (ACC) detection and SOS button input
Digital output
External relay control

Sensor compatibility, vehicle interfaces and enabled functions depend on each fleet configuration and are confirmed by our authorised dealers before installation.
