VANILLA GOLD X3 · LTE GNSS TERMINAL
Vehicle Intelligence.
Redefined.
Advanced control, connectivity and protection for modern commercial fleets.
A complete tracking and sensing terminal that combines vehicle control, wired sensor interfaces and wireless BLE peripherals in one scalable platform.
★★★★★
MIROS Trackscore
Cross-border tracking confidence

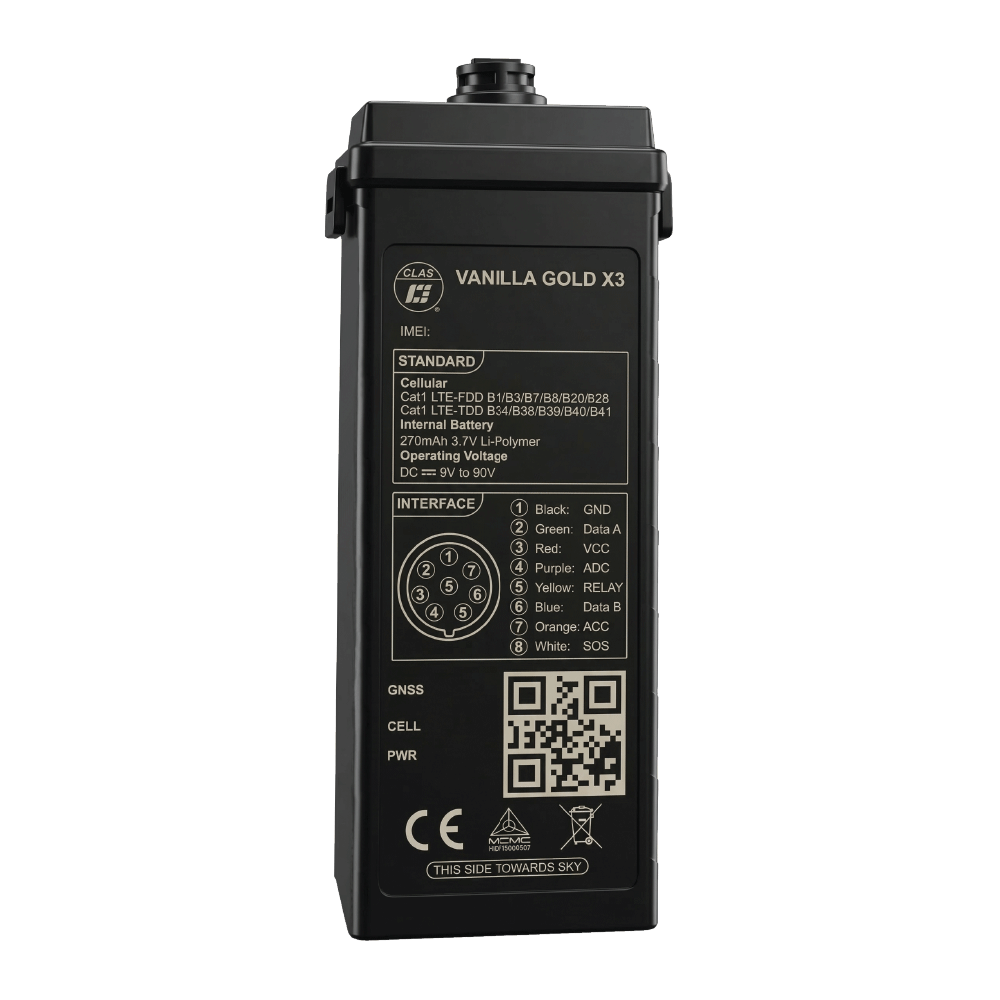

VANILLA GOLD X3
Invisible protection.
Visible confidence.
VGX3 is designed for diverse vehicle types and expanding operational needs. It brings tracking, protection, wired sensing and wireless peripherals together in a single compact platform for stronger fleet visibility and control.
ADVANCED CONTROL, CONNECTIVITY & PROTECTION
Vehicle control.
Built into the platform.
Extend tracking beyond location data with dedicated control and emergency inputs.
Vehicle Control & Protection
Immobiliser output, SOS / panic button input and real-time push notifications.
FLEET-READY HARDWARE
One terminal.
More operational visibility.
Connectivity & Reliability
LTE Cat 1 with GSM fallback, GNSS positioning and jammer detection.
Analog Input
Direct fuel sensor connection using configurable analog voltage input.
Wired Sensor Interfaces
RS485 connection for optional fuel level and temperature sensors.
Power Monitoring
Vehicle battery voltage monitoring with 9–90V wide-voltage support.
Wireless Sensor Support
Connect up to 10 compatible BLE sensors, including temperature and Hall sensors.
Built for Extreme Conditions
Dust and water resistance with operation from -20°C to +70°C.
POWERED BY ROTUAN SIM
Cross-Border Tracking Confidence
Maintain connected fleet visibility across supported Southeast Asian markets.
Malaysia
Thailand
Brunei
Singapore
CLAS TRACK PLATFORM
Real-time tracking
& fleet management.

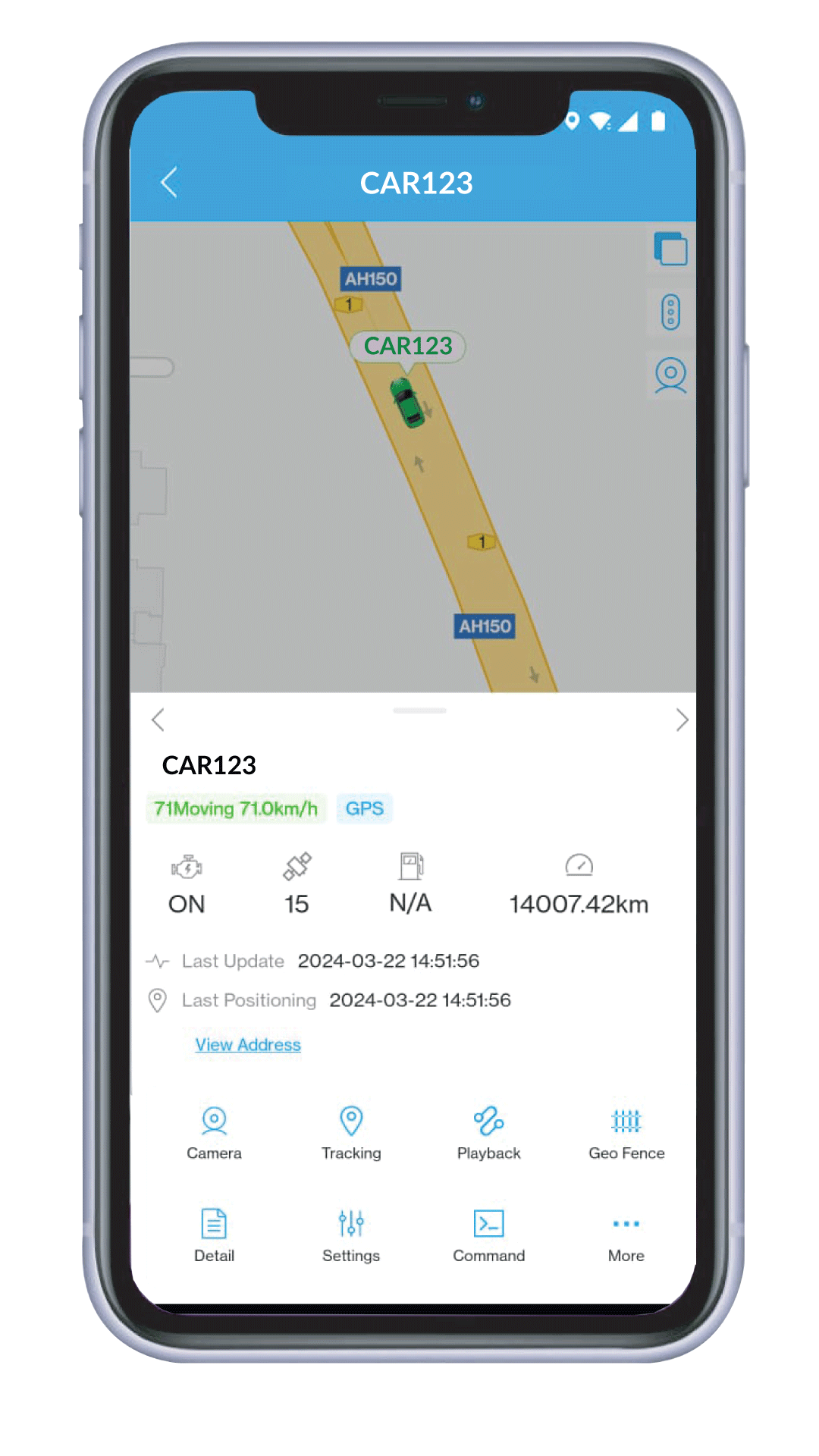

Monitor, manage and protect vehicles anytime, anywhere using the CLAS Track mobile app and web platform.
Smart Monitoring
- Street View
- Premium maps
- History playback
Security Control
- Comprehensive alerts
- Geofence protection
- Push notifications
Fleet Intelligence
- Multiple device status
- Command and control
- Location sharing
WEBSITE FEATURES
Advanced reporting.
Better fleet decisions.

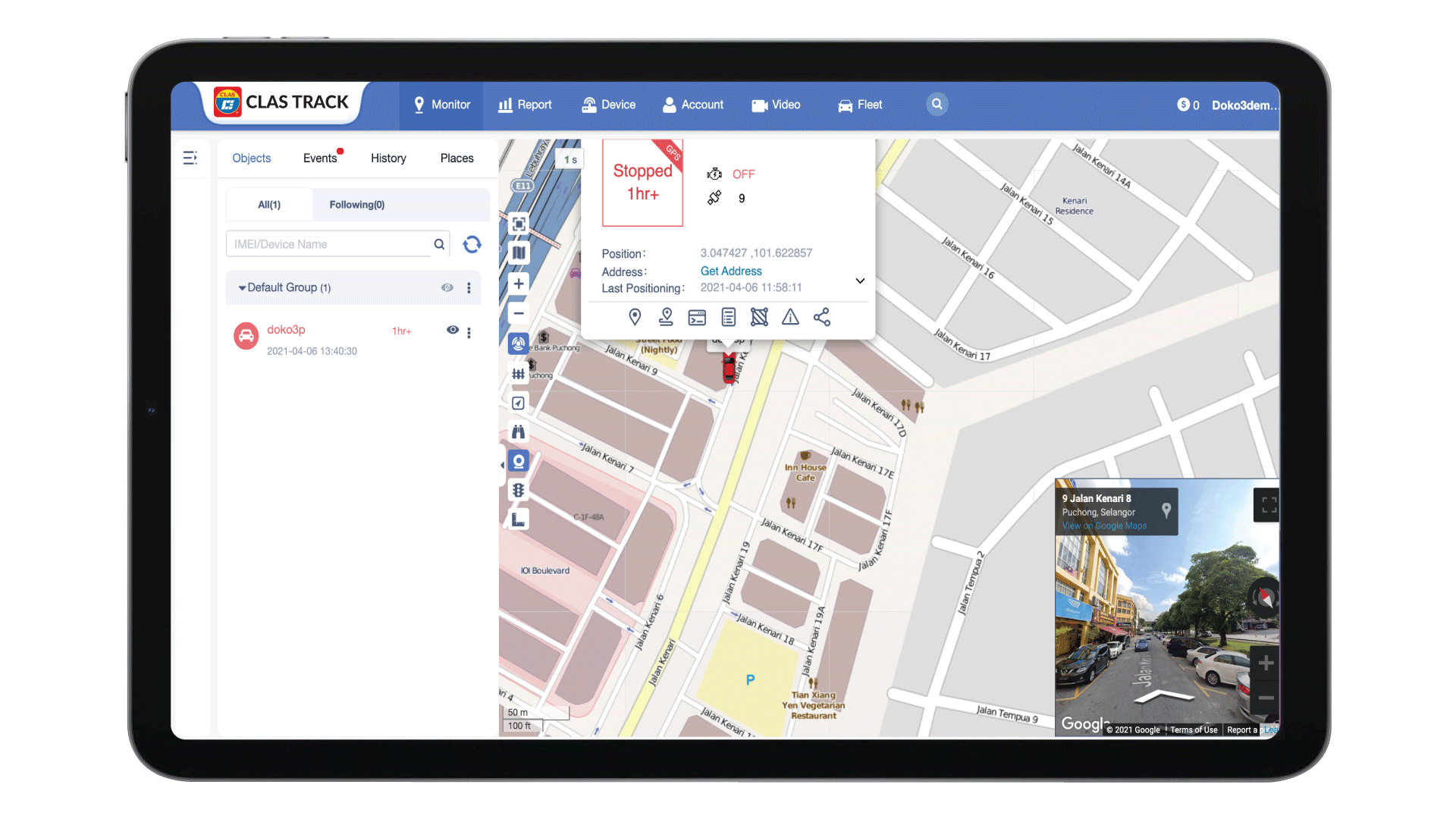

Use advanced reporting tools for trip history, fuel monitoring and fleet performance analysis through the CLAS Track web platform.
Visit clastrack.com →HOW IT WORKS
From vehicle data
to fleet action.
Install
Install VGX3 and connect the required power, ACC, SOS, relay or sensor wiring.
Connect
Add optional analog, RS485 or BLE sensors based on the fleet requirement.
Transmit
VGX3 sends GNSS, vehicle and sensor data through LTE or GSM fallback.
Monitor
View live status, history, alerts and reports through mobile or web access.

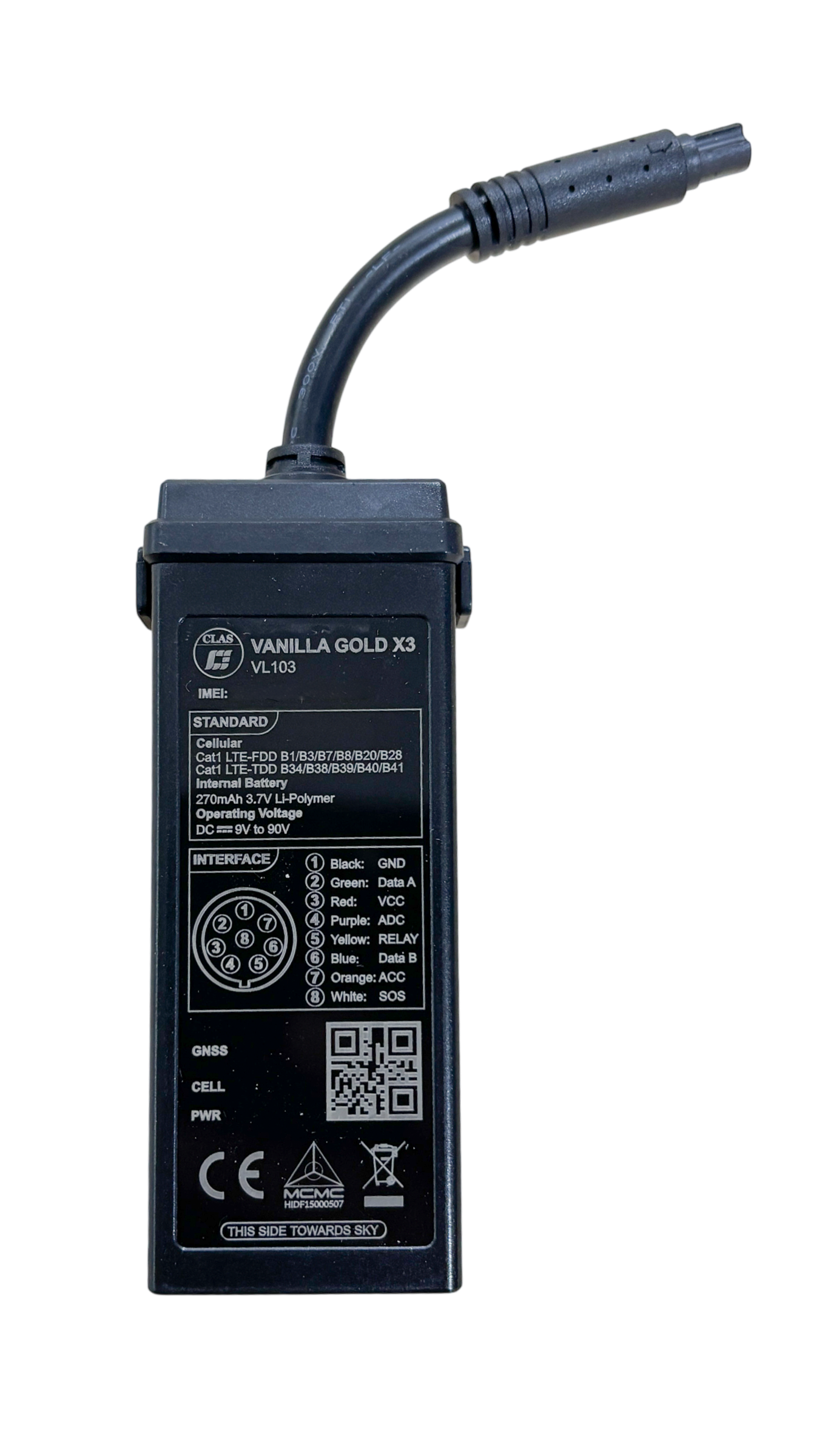

TECHNOLOGY
Compact hardware.
Commercial-grade capability.
Designed for accurate positioning, reliable communications and flexible sensor integration in demanding fleet environments.
Dimensions92.0 × 32.0 × 18.5 mm
Weight54.5 g
Internal battery270 mAh / 3.7V Li-Polymer
Memory3,000+ GPS data entries
BluetoothBLE 5.0
Firmware interfaceUSB Type-C
TECHNICAL DATA
VGX3 specifications.
Position & Location
- Technology
- GPS, GLONASS, BDS, Galileo, AGPS, LBS
- Accuracy
- < 2.5 m CEP
- Tracking sensitivity
- -165 dBm
- Acquisition sensitivity
- -148 dBm
- TTFF (open sky)
- Hot start ≤ 2 sec; cold start ≤ 38 sec
Cellular
- Technology
- LTE Cat 1, 2G GSM
- LTE FDD
- B1 / B2 / B3 / B4 / B5 / B7 / B8 / B28
- LTE TDD
- B34 / B38 / B39 / B40 / B41
- GSM
- B2 / B3 / B5 / B8
Power
- Battery
- 270 mAh / 3.7V industrial-grade Li-Polymer
- Input voltage
- 9–90 VDC
- Standby
- 5 mA
- Working
- 50 mA
- External power protection
- 0.5 mA
Interface
- LED indication
- GNSS blue, cellular green, power red
- SIM
- Nano-SIM
- Digital I/O
- 1 × ACC, 1 × SOS, 1 × relay
- Analog I/O
- 0–30V (±0.3V) or 0–5V (±0.1V)
- Serial port
- 1 × RS485
Operating Environment
- Temperature
- -20°C to +70°C
- Humidity
- 5% to 95%, non-condensing
- IP rating
- IP66
Features
- Sensors
- Accelerometer
- Scenarios
- Movement, speeding, geofence and stationary alerts
- Driving behaviour
- Harsh acceleration, braking, cornering and collision
- Configuration
- Bluetooth, Type-C, SMS and PC tools
- Certification
- CE, FCC, RoHS
Optional Configuration
Bluetooth sensor: KC208 Bluetooth remote control
RS485 sensor: Capacitive fuel level sensor or temperature sensor
Optional configurations may require customisation or separate purchase.READY TO UPGRADE YOUR FLEET?
Connected. Protected.
In control.
Speak with ProICE to plan the right VGX3 tracking, sensor and fleet-management configuration for your operation.
Get Vanilla Gold X3
